High-strength fiber FDY spinning machine
  • High-strength fiber FDY spinning equipment is mainly used for spinning 300 to 1200 denier high-strength fiber filament, the product is fully oriented drawn yarn (FDY). Monofilament strength of up to 7.0g / D or more. Its raw material is polypropylene slice.
  • 日韩三级-日韩在线一区二区三区:Inquiry Now
  • Description

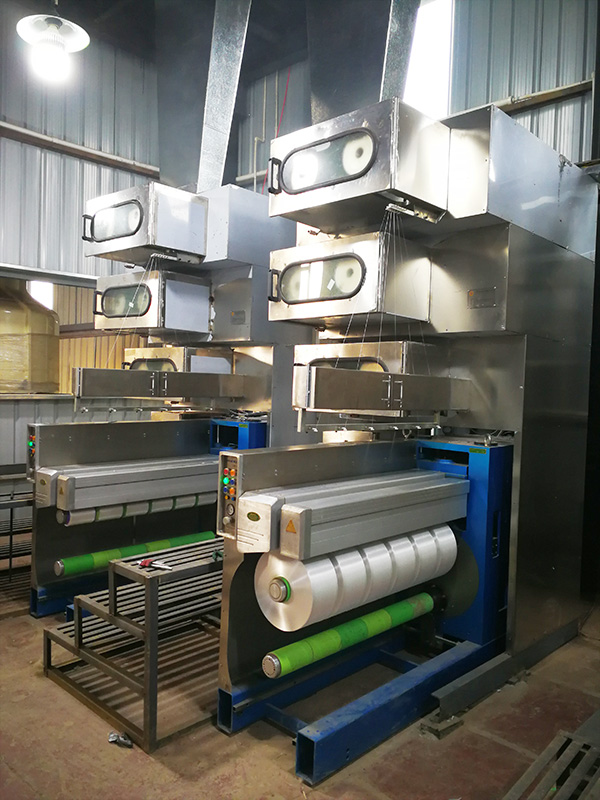

  • 高强2.jpg


    Polypropylene high strength FDY spinning combined drafting machine: This equipment is mainly used to produce 150D～1400D, fine, medium and coarse denier high strength polypropylene FDY stretched yarn.Filament use: seat belts, safety nets, conveyor belts, industrial sewing threads, fire hoses, slings, etc.Equipment features: 1, low energy consumption. 2. The equipment runs stably with low failure rate and high output. 3. Easy operation and maintenancePower range: 7.0g/d⁓7.5g/dEquipment model: RH-G4, RH-G6, RH-G8, RH-G12


    High-strength fiber FDY spinning equipment:High-strength fiber FDY spinning equipment is mainly used for spinning 150D～1400D denier high-strength fiber filament, the product is fully oriented drawn yarn (FDY). Monofilament strength of up to 7.0g / D or more. Its raw material is polypropylene slice.High-strength polypropylene filament mainly used for: industrial sewing thread, slings, geotextiles, marine ropes, conveyor belts, fire hoses, safety and protection with wire mesh and other fields. The basic parameters of the device: Finished fineness: 150D～1400D (Dan) Mechanical speed (maximum): 3000m / min Process speed (maximum): 1600m / min ~ 2200m / minEach site tow count: 4,6,8 beam Number drafting zone: Zone 4Equipment main components:1, the automatic feeder2, masterbatch injection machine3, screw extruder4, pre-filter (selected by the user)5 spinning boxes and components6, metering pumps and drive7, side blowing, refrigeration units and corridor8, drawing heat roller9, winding frame and oil tanker means10, the network device11, automatic winding machine12, the electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.Device main features:1. monofilament strength: 6.8 ~ 7.5g / d2. The high-frequency heat roller can be heated, low energy consumption, hot roll temperature uniformity3. side blowing velocity uniformity and stability4. equipment operation and stability, low failure rate, easy operation and maintenance
